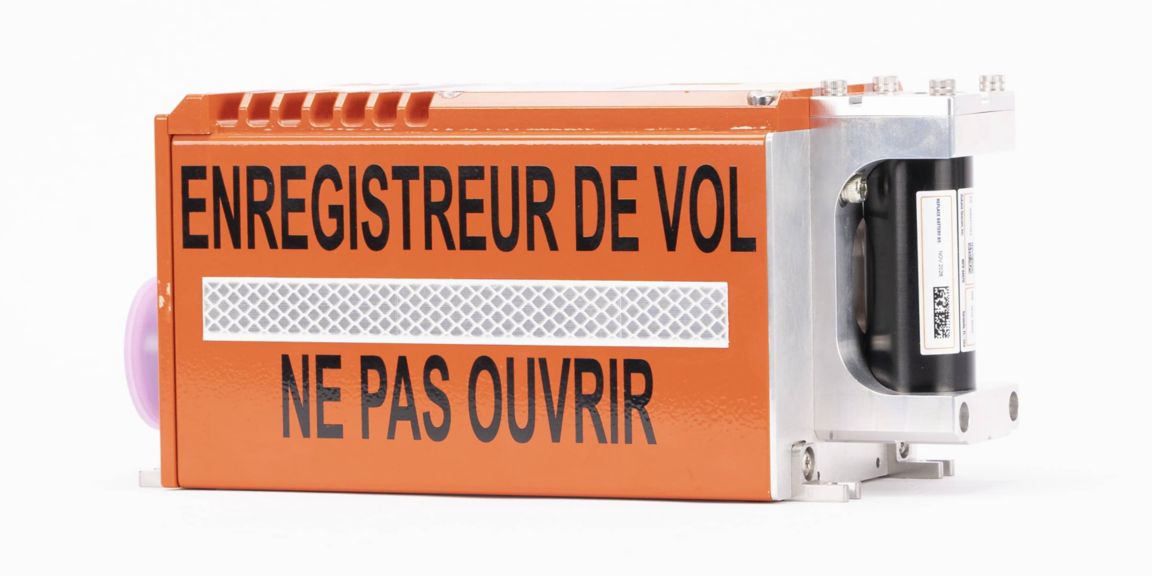

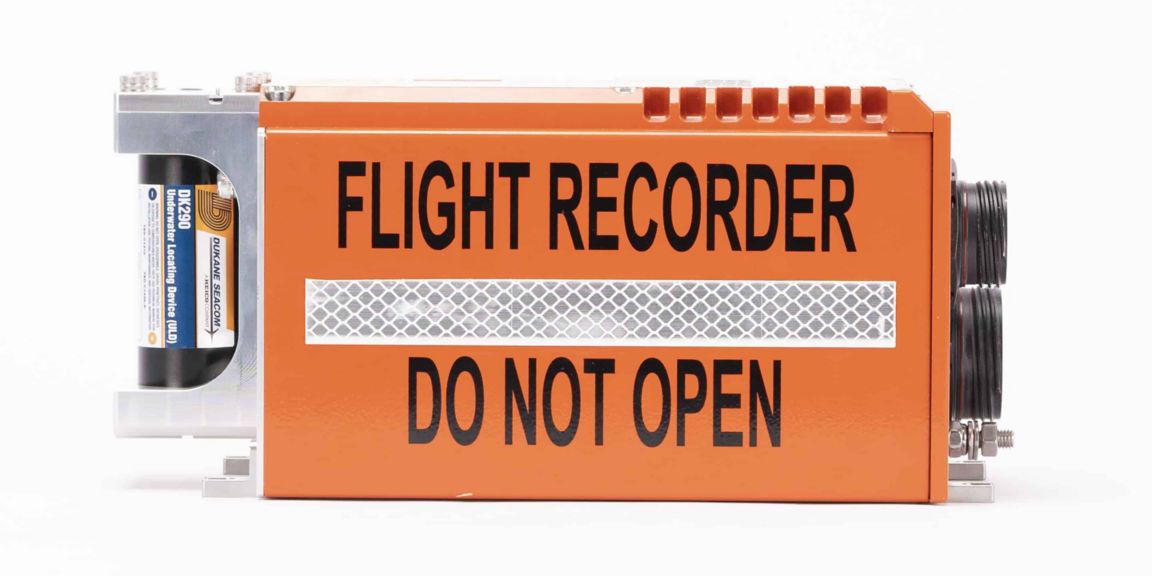

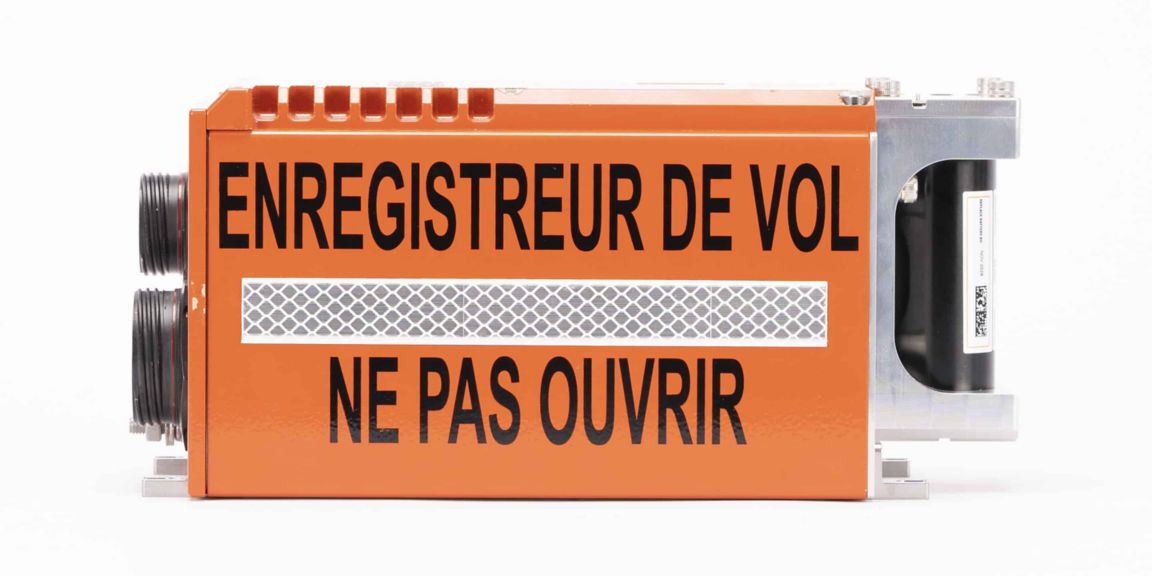

LW-HR25 Combined Recorder

Overview
Combine voice and flight data recording with our LW-HR25 Combined Recorder, enhancing safety and comprehensive analysis.

Compatible Aircraft

Dassault Falcon 6X
Dassault Falcon 7X
Dassault Falcon 8X

Specifications

Performance Data

  • (E)TSO Functions

    • ETSO-C121b
    • ETSO-C123c
    • ETSO-C124c
    • ETSO-C176a
    • ETSO-C177a
  • Temperature range

    • Non-operating: -55°C to +85°C
    • Operating: -55°C to +70°C
  • Size ATR

    • non-ATR
  • Rotor Tacho

    • 1x (6Hz to 8188Hz)
  • Recording Duration

    • 2+ Hrs for AIR
    • 25+Hrs for FDR/CVR/DLR
  • Power Requirements

    • +28 VDC
  • Power Consumption

    • 15 Watts maximum Watt
  • Industry Standard

    • ARINC 717
    • ARINC 747
    • ARINC757
    • ED-112A
  • Ethernet

    • 1x 1000Mbit/s
    • 1x 100Mbit/s
  • Digital Output

    • 3x (CVR status, FDR Status, DLR Status) milliampere
  • Digital Input

    • 10x (PTT, PTE, FDR Sel, CAM Source, Stop Recording, Stop Sel Logic, RIPS info... )
  • Accelerometer

    • 1x
  • ARINC 717

    • 1x up to 4096wps
  • ARINC 429 Output

    • 1x OMS
  • ARINC 429 Input

    • 7x (OMS, CMU, GMT, 4x Generic A429)

Dimensions

  • Length

    • 265 mm
  • Width

    • 120 mm
  • Weight

    • 3.72 - 3.85 kg
  • Dimensions

    • 265 x 120 x 122.6 mm

Ordering

  • Usually Bought With

    • 69001074-080
    • 952-0051-002



  • Compatible Platform

    • Dassault Falcon 6X
    • Dassault Falcon 7X
    • Dassault Falcon 8X
