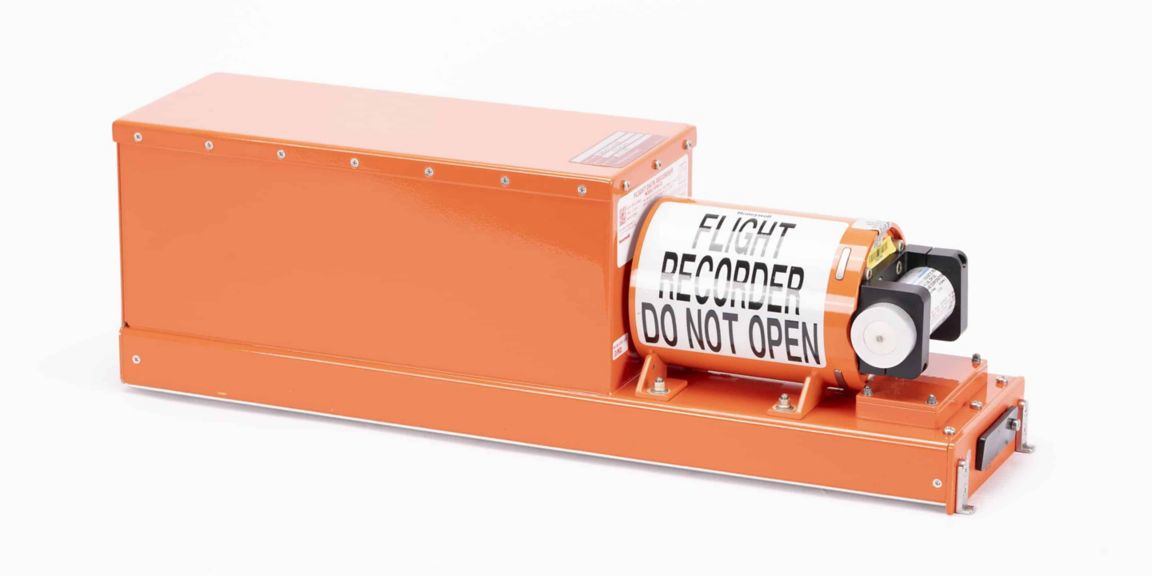

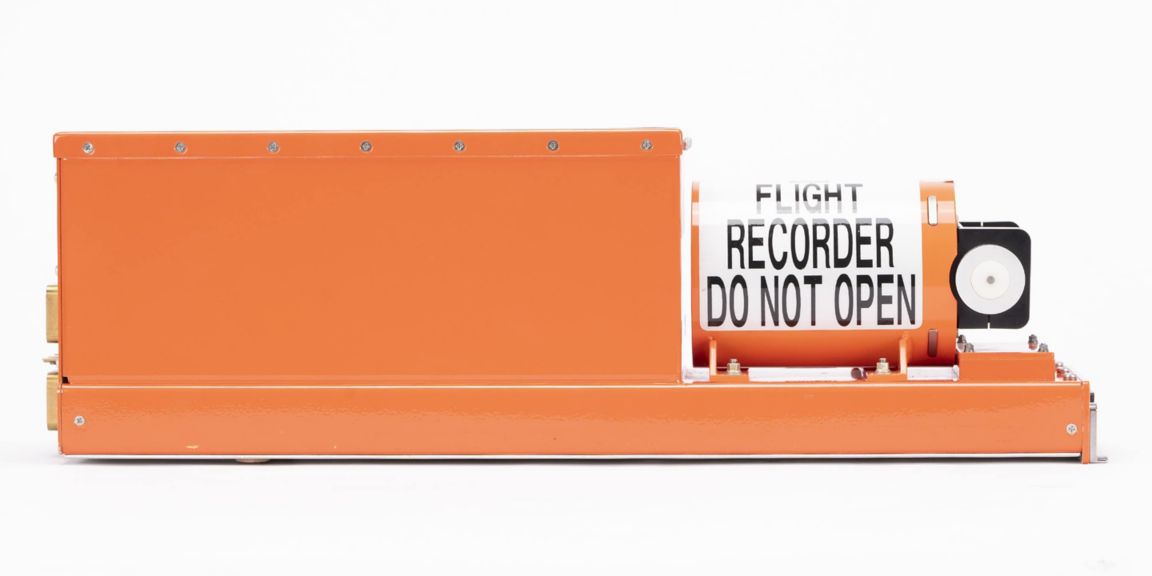

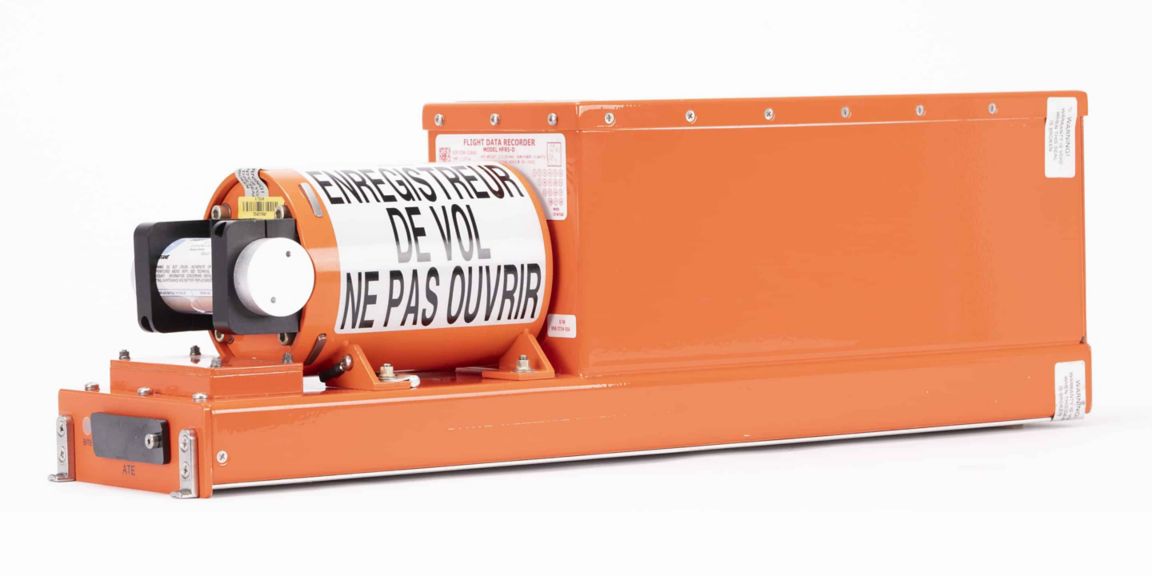

HFR5-D SSFDR Flight Data Recorder - 25 Hours

Overview
Record extensive flight data with our 25-hour HFR5-D SSFDR Flight Data Recorder, perfect for thorough post-flight analysis

Compatible Aircraft

Airbus A320 Neo
Boeing B737 MAX
Boeing B737 Neo
Boeing B777

Specifications

Performance Data

  • Recording Duration

    • 25 Hour
  • Power Requirements

    •  115 VAC, 360-800Hz or +28 VDC
  • Temperature range

    • Non-operating: -55°C to +85°C
    • Operating: -55°C to +70°C
  • Power Consumption

    • 8 watts max Watt
  • Industry Standard

    • ARINC 717
    • ARINC 747
    • ED-112
  • ARINC 429 Output

    • 1x OMS
  • (E)TSO Functions

    • TSO-C121b
    • TSO-C124a
  • Connector Types

    • GSE (Front) D-sub 15pins

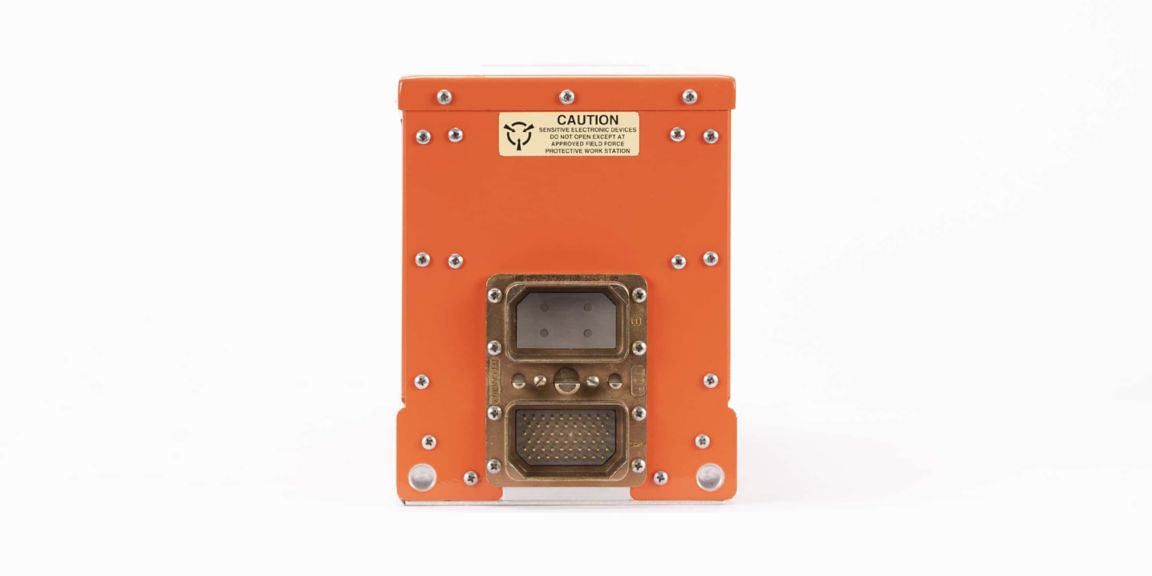

    • Main (Rear) DPX2-37065-12
  • ARINC 429 Input

    • 1x OMS
  • Digital Input

    • 1x (FDR Inhibit)
  • ARINC 717

    • 1x up to 1024wps
  • Size ATR

    • 1/2 ATR long
  • Ethernet

    • 10Mbit/s

Dimensions

  • Length

    • 496.8 mm
  • Width

    • 124.7mm
  • Weight

    • 10.6 lbs
    • 4.8 kg

Ordering

  • Usually Bought With

    • 69001074-080
    • 952-0051-002
