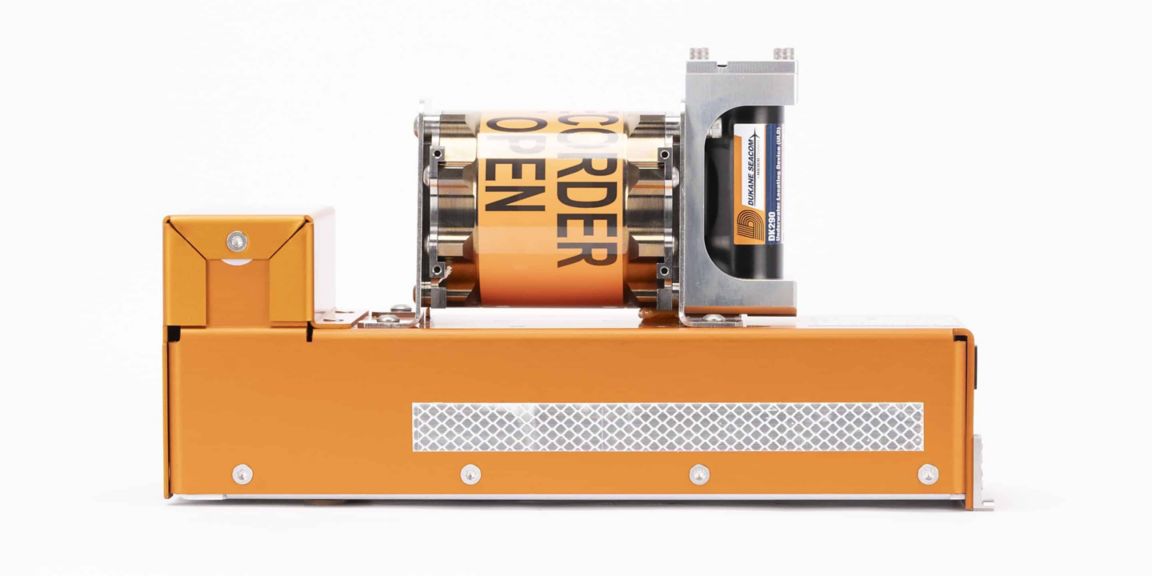

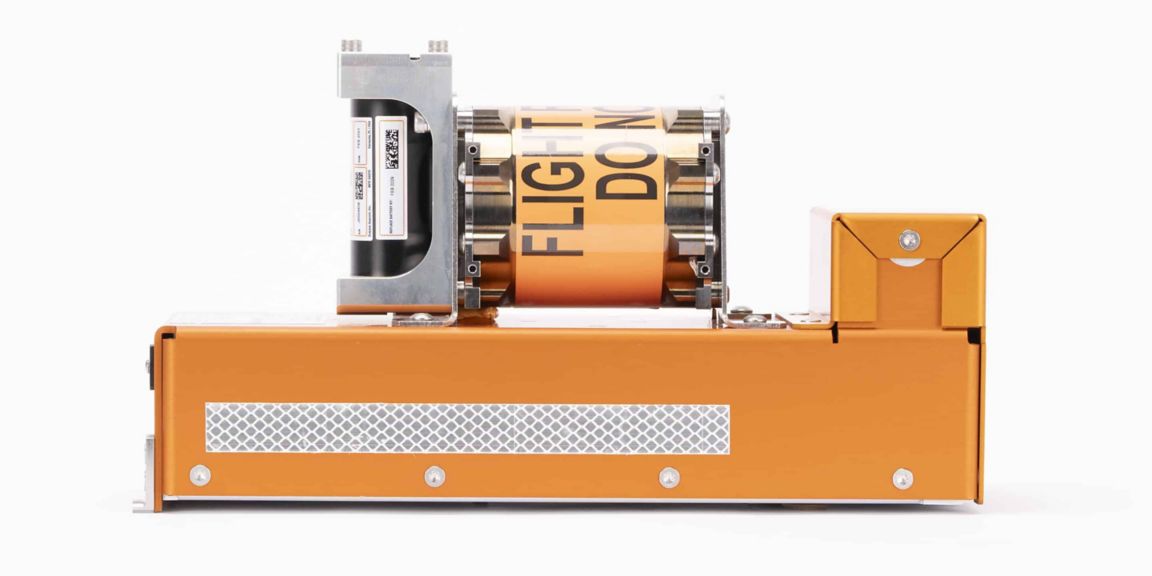

HCR-25 Honeywell Connected Recorder-25 hours
Overview
This recorder enables operators and manufacturers the option to access the data at all times, resulting in the potential for better maintenance predictability and operational insight through data analytics. In addition, in the event of an emergency, the data on board will be quickly accessible to investigators.
The new HCR-25 surpasses the 2021 European Aviation Safety Agency minimum 25-hour cockpit voice recording mandates. A variant of this recorder is available in a lightweight CVR/FDR/COMBI configurations.
Read this infographic that explains how the HCR-25 recorder works.
The new HCR-25 surpasses the 2021 European Aviation Safety Agency minimum 25-hour cockpit voice recording mandates. A variant of this recorder is available in a lightweight CVR/FDR/COMBI configurations.
Read this infographic that explains how the HCR-25 recorder works.
Compatible Platform
Boeing B737 Max
Boeing B737-8200
Boeing B767-300F
Boeing B777-200LR
Boeing B777-300ER
Boeing B777F
Specifications
Performance Data
(E)TSO Functions
- ETSO-C121b (90-days ULB)
- ETSO-C123c
- ETSO-C177a
Temperature range
- Non-operating: -55°C to +85°C
- Operating: -55°C to +70°C
Static Crush
- 22.25kN for 5 minutes
Size ATR
- 1/2 ATR short
Recording Duration
- 25-hours
Power Requirements
- 115 VAC, 400Hz or +28 VDC
Power Consumption
- 13 Watts max Watt
Penetration Resistance
- 227kg from 3 meters
Low Temperature Fire
- 260°C for 10 hours
Industry Standard
- ED-112A
Impact Shock
- 3,400 G for 6.5 ms
High Temperature Fire
- 1100°C for 60 minutes
Fluid Immersion
- 48-hours
Deep Sea Pressure
- 60MPa for 24 Hours and 3 meters for 30 days
Connector

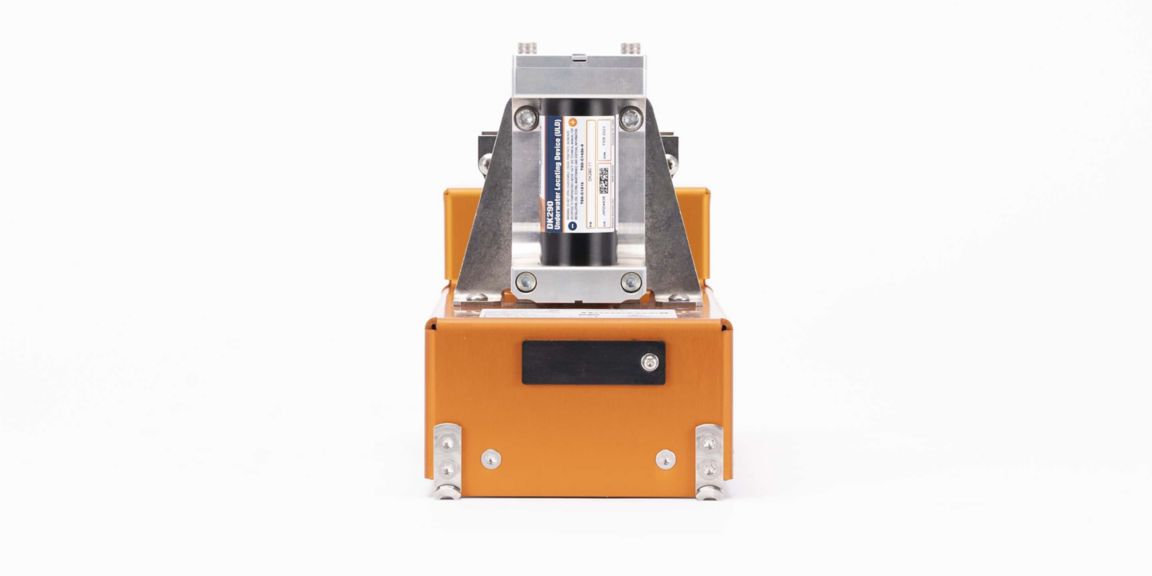

- GSE (Front) D-sub 15pins

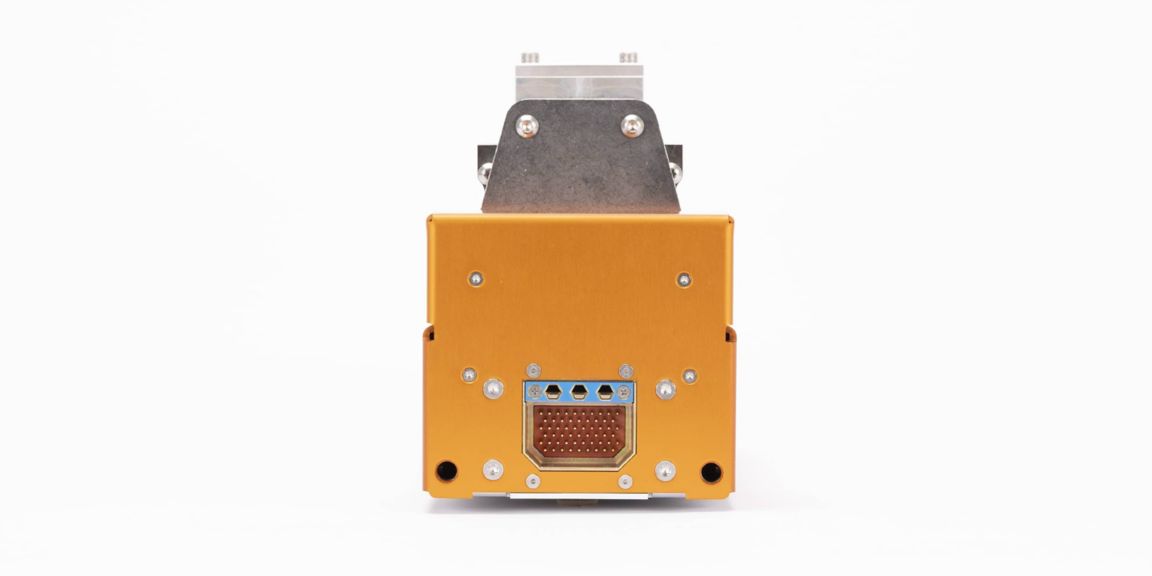

- Main (Rear) DPXB-57-34P-0001
Usually Bought With
- 69001074-080
- 952-0051-002
Dimensions
Dimensions
- 319 x 124 x 178 mm
