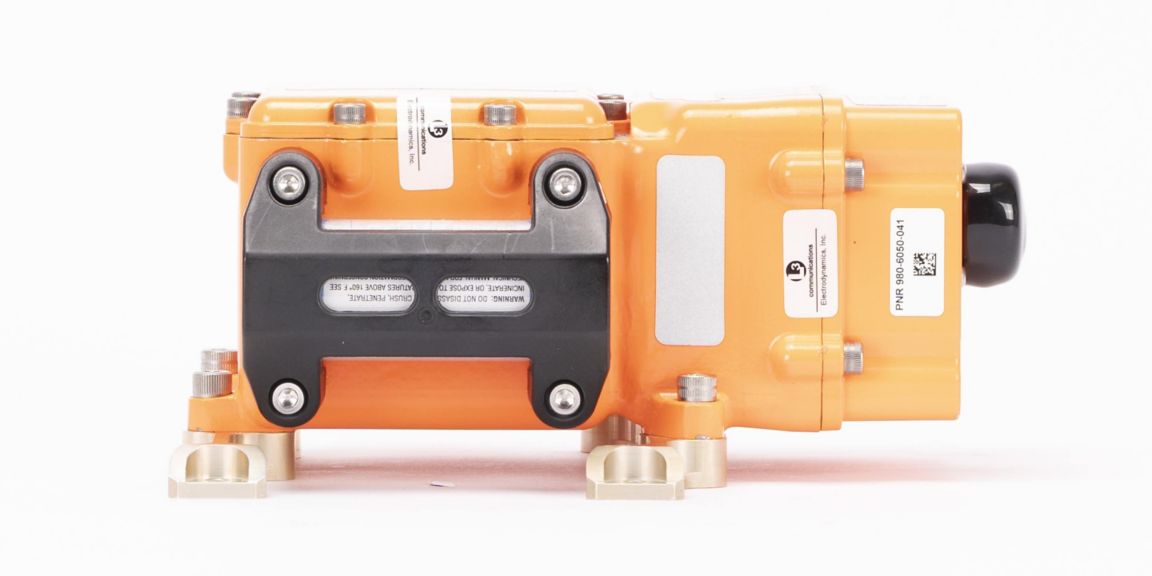

LW-FDR Flight Data Recorder - 25 Hours

Overview
Depend on our 25-Hour LW Flight Data Recorder for thorough data capture, aiding in detailed flight analysis.

Compatible Aircraft

Dassault F2000
Dassault F7X
Dassault F900

Specifications

Performance Data

  • Recording Duration

    • 25 Hours
  • Power Requirements

    • 115 VAC, 400Hz or +28VDC
  • Temperature range

    • Non-operating: -55°C to +85°C
    • Operating: -55°C to +70°C
  • Power Consumption

    • 8 watts max Watt
  • Industry Standard

    • ARINC 717
    • ED-112
  • (E)TSO Functions

    • TSO-C121 for P/N 002
    • TSO-C121b for P/N 003
    • TSO-C124b
    • TSO-C142a for P/N 003
  • Connector Types

    • MIL-DTL-38999, SERIES II (MS27508E16F35A)
  • ARINC 717

    • 1x

Dimensions

  • Length

    • 232.91 mm
  • Width

    • 150.24 mm
  • Weight

    • 3.31kg
    • 7.3 lbs

Ordering

  • Replacement Part

    • 980-4131-002
