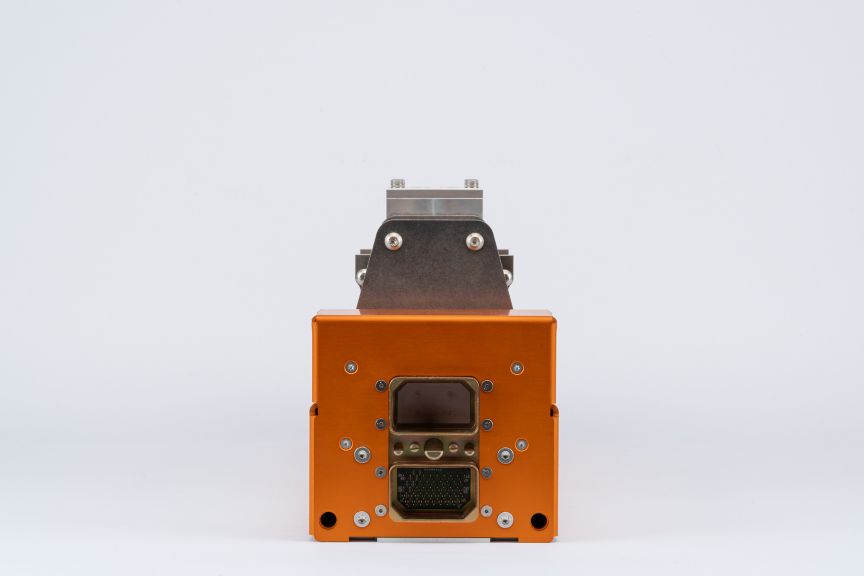

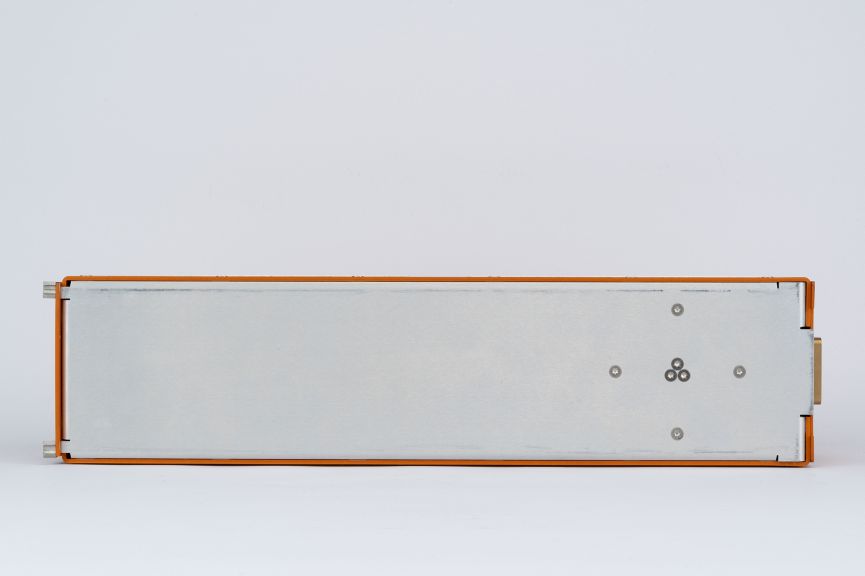

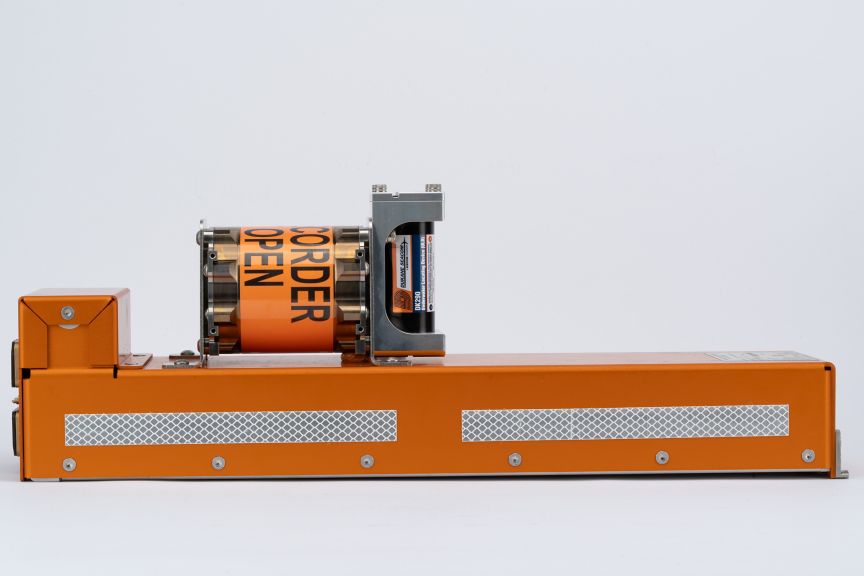

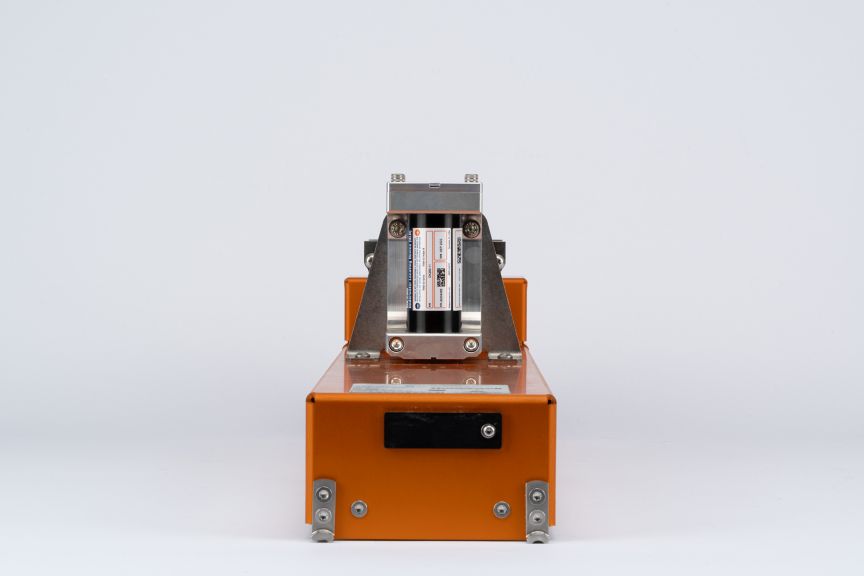

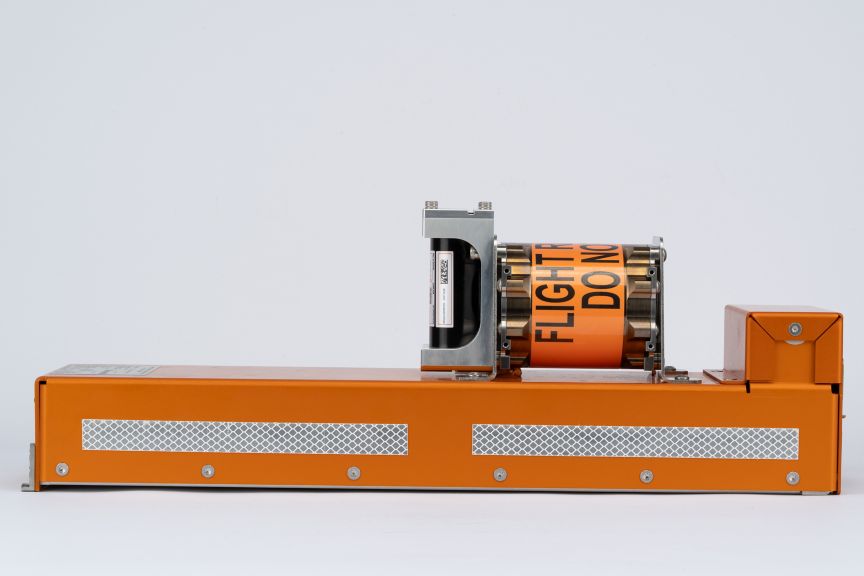

HCR-25 FDR Flight Data Recorder-25 Hours

Overview
This recorder enables operators and manufacturers the option to access the data at all times, resulting in the potential for better maintenance predictability and operational insight through data analytics. In addition, in the event of an emergency, the data on board will be quickly accessible to investigators. The new HCR-25 will surpass the requirements of the upcoming 2021 European Aviation Safety Agency minimum 25-hour cockpit voice recording mandates. A variant of this recorder is available in a lightweight CVR/FDR/COMBI configurations. Read this infographic that explains how the HCR-25 recorder works.

Compatible Aircraft

Boeing B737 MAX
Boeing B737-8200
Boeing B767-300F
Boeing B777-200LR
Boeing B777-300ER
Boeing B777F

Specifications

Performance Data

  • Recording Duration

    • 25-Hours
  • Power Requirements

    • 115 VAC, 400Hz or +28 VDC
  • Temperature range

    • Non-operating: -55°C to +85°C
    • Operating: -55°C to +70°C
  • Power Consumption

    • 13 Watts max Watt
  • Industry Standard

    • ARINC 717
    • ARINC 747
  • ARINC 429 Output

    • 1x OMS
  • (E)TSO Functions

    • ETSO-C121b (90-days ULB)
    • ETSO-C124c
  • Connector Types

    • GSE (Front) D-sub 15pins
    • Main (Rear) DPX2-37065-108
  • ARINC 429 Input

    • 1x OMS
  • Digital Output

    • 2x (FDR Status, FDR Maint) milliampere
  • Digital Input

    • 1x (FDR Inhibit)
  • ARINC 717

    • 1x up to 4096wps
  • Size ATR

    • 1/2 ATR long
  • Ethernet

    • 100Mbit/s

Dimensions

  • Width

    • 124 mm
  • Weight

    • 4.75 kg
  • Dimensions

    • 506.2 x 124 x 178.2 mm

Ordering

  • Usually Bought With

    • 69001074-080
    • 952-0051-002
