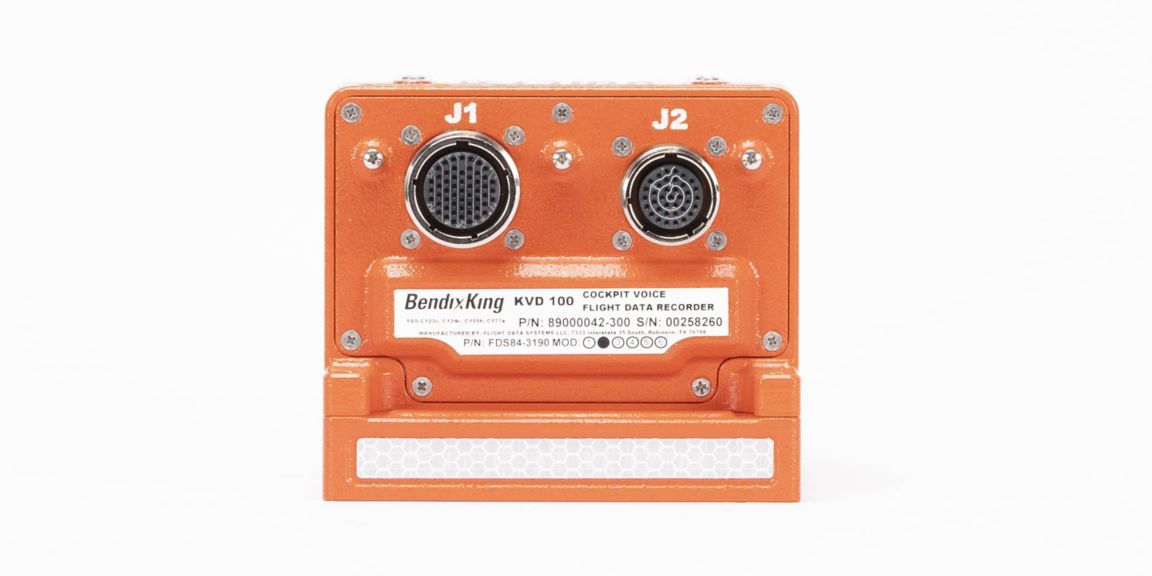

KVD100 Combined Recorder
Overview
Enhance safety with our KVD100 Combined Recorder, capturing both flight data and voice recordings for comprehensive insights.
Compatible Aircraft
Hawker 750
Hawker 800XP
Hawker 850XP
Hawker 900XP
Specifications
Performance Data
(E)TSO Functions
- TSO-C123c
- TSO-C124c
- TSO-C155b
- TSO-C177a
Temperature range
- Non-operating: -55°C to +85°C
- Operating: -40°C to +70°C
Recording Duration
- 25 Hours
Power Requirements
- 28 VDC
Power Consumption
- 18 watts max Watt
Ethernet
- 10/100
Connector Types
- GSE (Front) 37pins
- Main (Rear) MIL-C-38999 SERIES 3
ARINC 717
- 64 to 1024 wps
Dimensions
Width
- 153.9 mm
Weight
- 3.04kg
- 6.7 lbs
Dimensions
- 124 x 153.9 x 146.2 mm
Compatible Platform
- Hawker 750
- Hawker 800XP
- Hawker 850XP
- Hawker 900XP
Product Number
Parts
