GPSdome
Overview

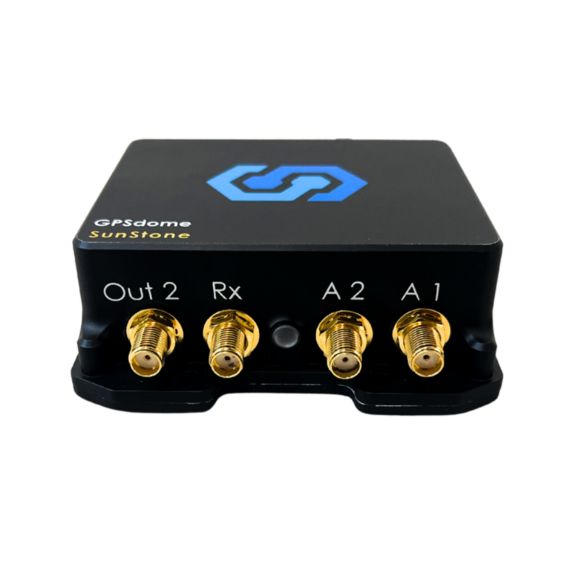

The GPSdome, by infiniDome, is a small add-on device that provides the first layer of protection against GNSS jamming attempts, ensuring continuity of operation during low-power jamming conditions and the ability to achieve the crucial first GPS lock even in GPS-challenged environments. GPSdome is compatible with any off-the-shelf GNSS receiver and antenna. Honeywell signed a collaboration agreement with infiniDome in August to jointly develop and deliver GPS signal protection systems.
Honeywell is collaborating with InfiniDome to jointly develop and deliver GPS signal protection systems. The solutions are intended to serve a variety of purposes for both defense and commercial applications, and to support a wide range of vehicle platforms, including commercial aircraft, urban air mobility systems, unmanned aerial systems and surface vehicles.
Honeywell is collaborating with InfiniDome to jointly develop and deliver GPS signal protection systems. The solutions are intended to serve a variety of purposes for both defense and commercial applications, and to support a wide range of vehicle platforms, including commercial aircraft, urban air mobility systems, unmanned aerial systems and surface vehicles.
Compatible Aircraft
Not certified for aircraft applications for now
Specifications
Key Differentiators
- Certifications
- RoHS compliantCE Compliant (PPS Version)
- Features & Benefits
- Protect against GNSS Jamming
- Value Proposition
- 20 dB Attenuation
- Compatible with any off the shelf GNSS antenna
Dimensions
- Length
- 70 mm
- Width
- 48 mm
- Depth
- 24mm
- Weight
- 150 g
- Dimensions
- 70 x 48 x 24mm
- Volume
- 80.64 cm³ cubic centimetre
Performance Data
- LED
- Yes
- Typical Heading Error with HCINS
- 0.28 deg
- Non-operating Temperature Range
- -40° C to 85 C°
- External LED Status Support
- Yes
- Submersion (Non-Operating)
- IP67
- Operating temperature
- -40° C to 85 C
- Usually Bought With
- HCINS HRVS
- Operating Frequency
- 1575.42MHz (GPS L1 C/A Code) hertz
- GNSS Constellations
- GPS
- Types of Products
- Protect against GNSS Jamming
- Power Consumption
- <0.75W Watt
- Chassis Included
- Yes
- GNSS Capability
- GPS L1 Protected frequency
- Sustainability
- Compliant
- Supply Voltage
- 3.3VDC- 32VDC 0.75W voltage alternating current
- Component of
- Resilient Navigation System
- Applications
- Small Unmanned Aerial Systems (UAS)
- Environment
- IP67
- Components
- Signal processing hardware
- Vibration
- Information not available now
- Features
- Protect against GNSS Jamming
- Output
- Filtered out GNSS signals - protect the system against GPS jamming.
- Shock
- Information not available now
- Setup
- Plug and Play
- Power
- <0.75W Watt
- Size
- 70 x 48 x 24mm millimetre
- GNSS
- Protect against GNSS Jamming
