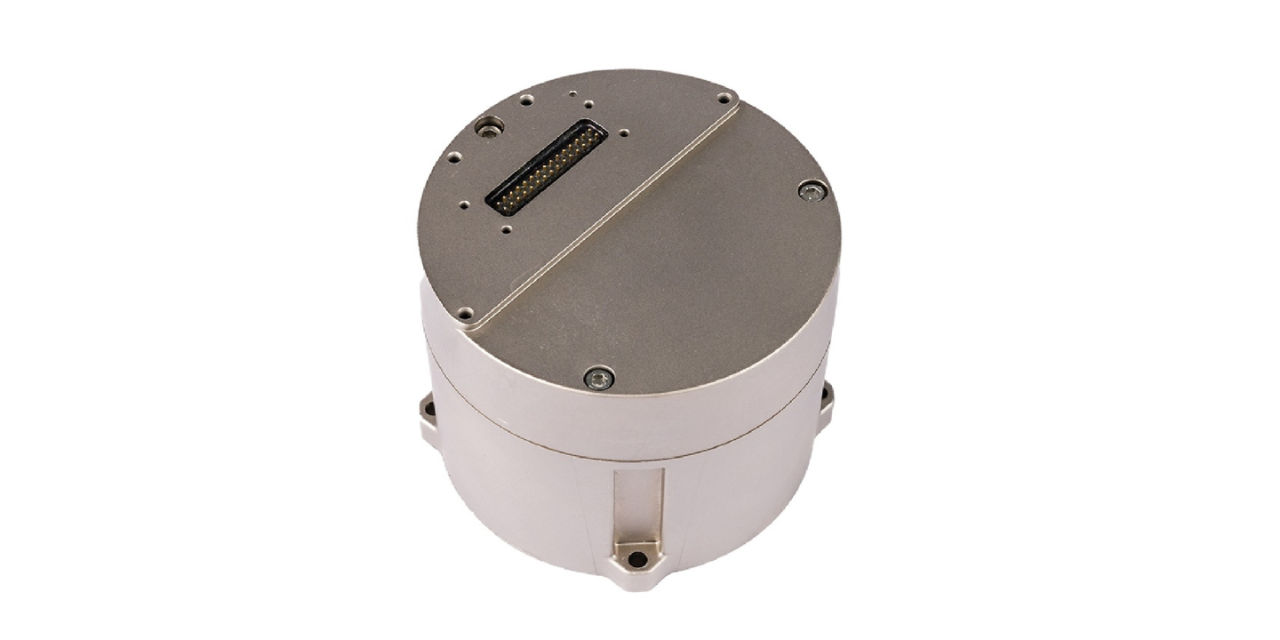

HG2802 Fiber Optic Gyro Inertial Measurement Unit
Overview
The HG2802 is a higher operating range option within the HG2800 family of high-performance tactical grade IMUs that includes Honeywell’s next-generation micro-electro mechanical systems (MEMS) accelerometers in addition to closed-loop fiber optic gyros (FOGs), providing improved dynamic range and scale factor linearity performance. These IMUs are developed to affordably meet the needs of a broad range of guidance and control applications.
Its small-size, light-weight, high-bandwidth, low-noise, zero-maintenance configuration makes the HG2800 IMUs ideal for electro-optical (EO)/FLIR stabilization, camera/radar stabilization, pointing and positioning, mapping/inspection, autonomous underwater (AUV) and UAV navigation, odometer/DVL, and silent operation for acoustic-sensitive systems.
The HG2800 flexible power supply design simplifies system integration for a single +5V supply voltage or dual +15V, +5V supplies, while consuming less power than competing fiber optic gyro-based IMUs in the market.
As our first-ever Tactical FOG IMU, the HG2800 series fills an important void for commercial and government entities needing precision imaging, platform stabilization and low noise acoustically-sensitive navigation and stabilization solutions. The HG2800 is a dual-use non-ITAR restricted IMU designed specifically to meet both commercial/industrial and military needs.
Its small-size, light-weight, high-bandwidth, low-noise, zero-maintenance configuration makes the HG2800 IMUs ideal for electro-optical (EO)/FLIR stabilization, camera/radar stabilization, pointing and positioning, mapping/inspection, autonomous underwater (AUV) and UAV navigation, odometer/DVL, and silent operation for acoustic-sensitive systems.
The HG2800 flexible power supply design simplifies system integration for a single +5V supply voltage or dual +15V, +5V supplies, while consuming less power than competing fiber optic gyro-based IMUs in the market.
As our first-ever Tactical FOG IMU, the HG2800 series fills an important void for commercial and government entities needing precision imaging, platform stabilization and low noise acoustically-sensitive navigation and stabilization solutions. The HG2800 is a dual-use non-ITAR restricted IMU designed specifically to meet both commercial/industrial and military needs.
Specifications
Dimensions
Weight
- 1.76 lbs (0.80 kg)
Dimensions
- 3.35 in Height (8.50 cm)
Performance Data
Data Rate
- 200 Hz (Guidance) and 1200 Hz(Control) - Other data rates available
Supply Voltage
- Single +15VDC, or Dual +15VDC and +5VDC voltage alternating current
Power Consumption (Typical)
- 7W Nominal
Power Consumption (Maximum)
- 10W Max
Operating Temperature
- 40°C to +71°C
