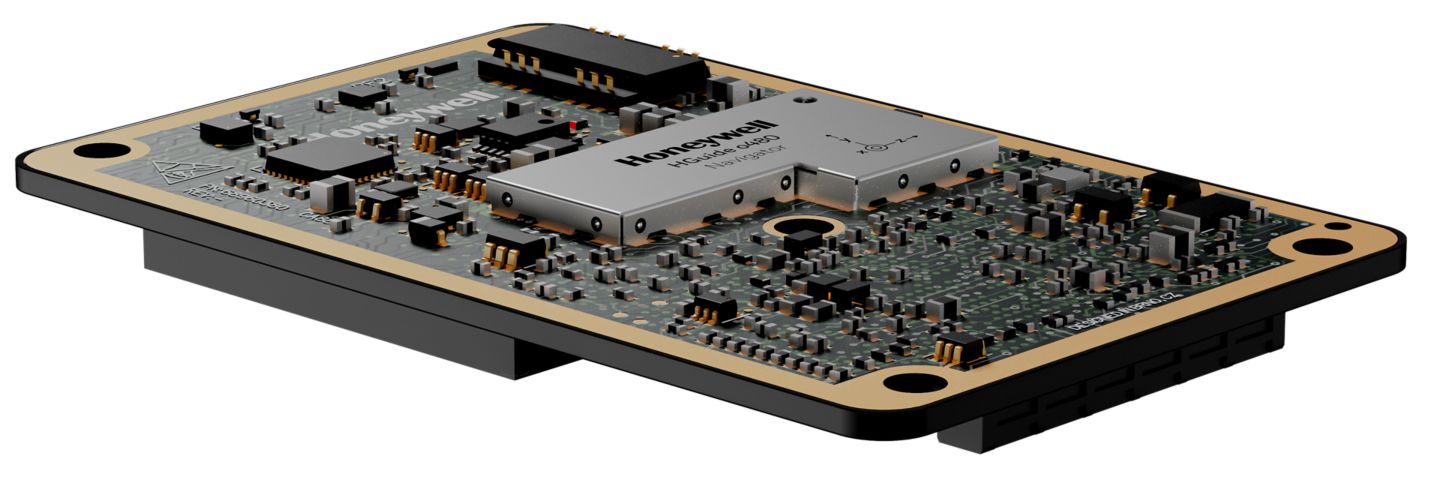

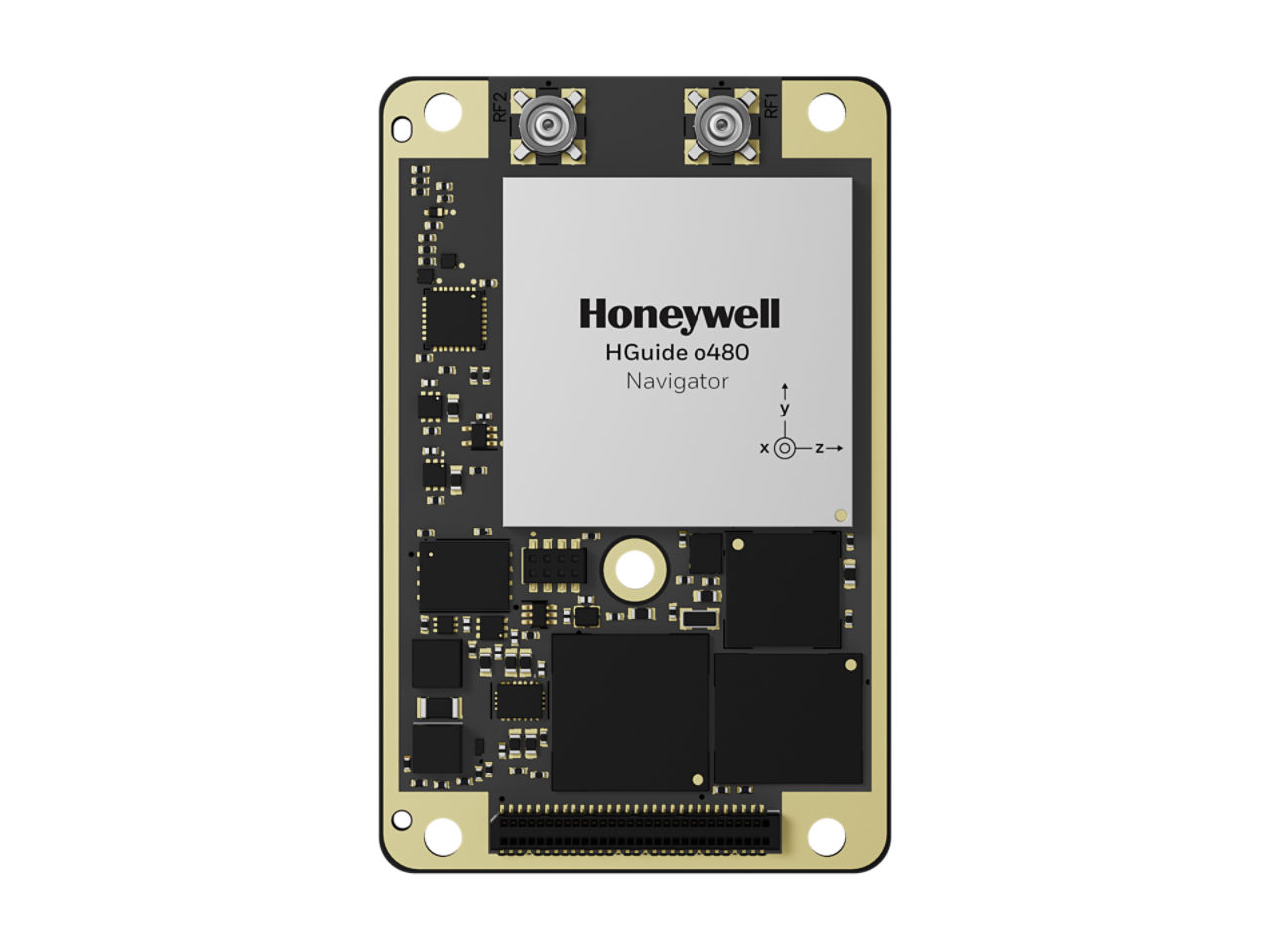

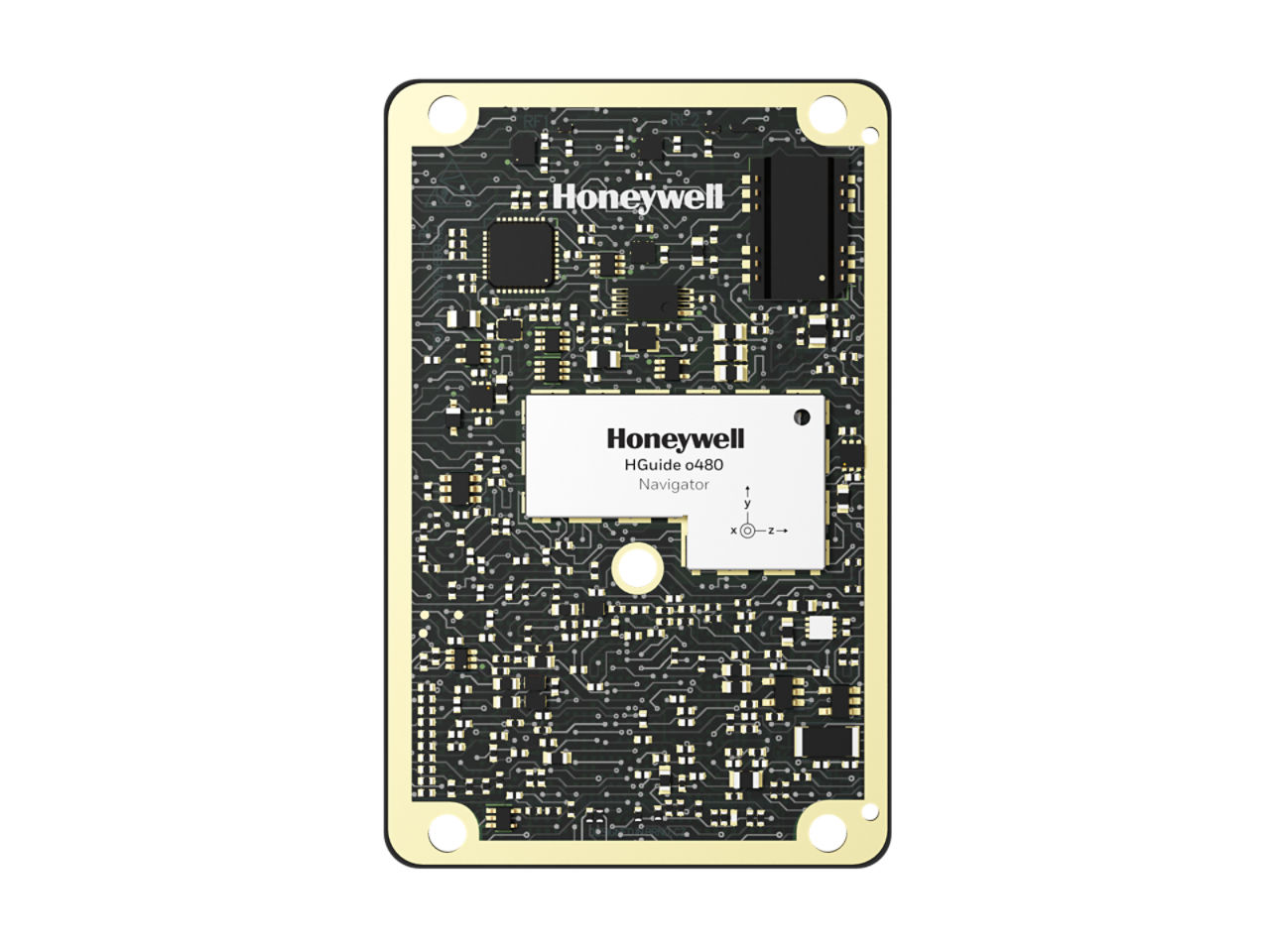

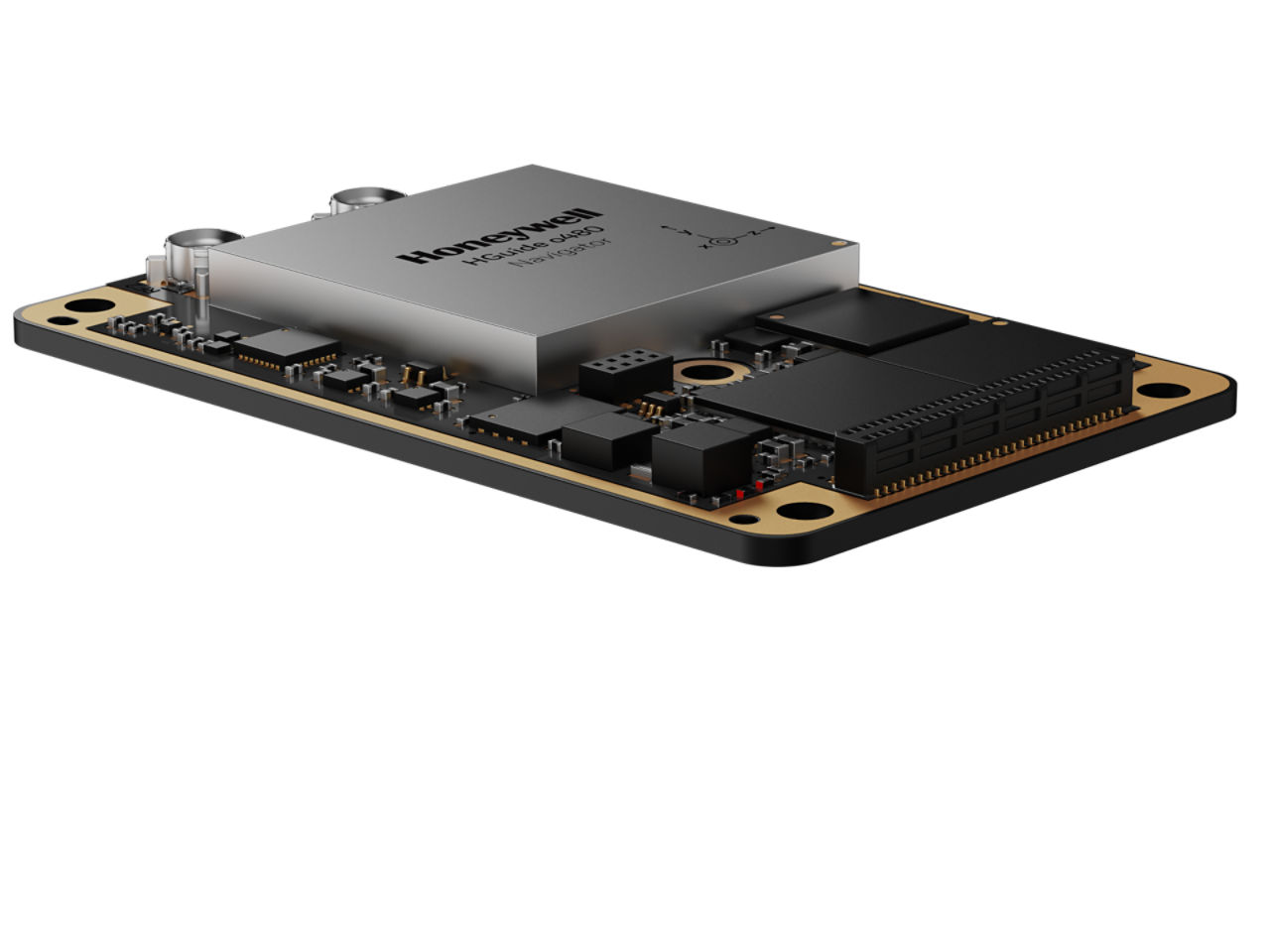

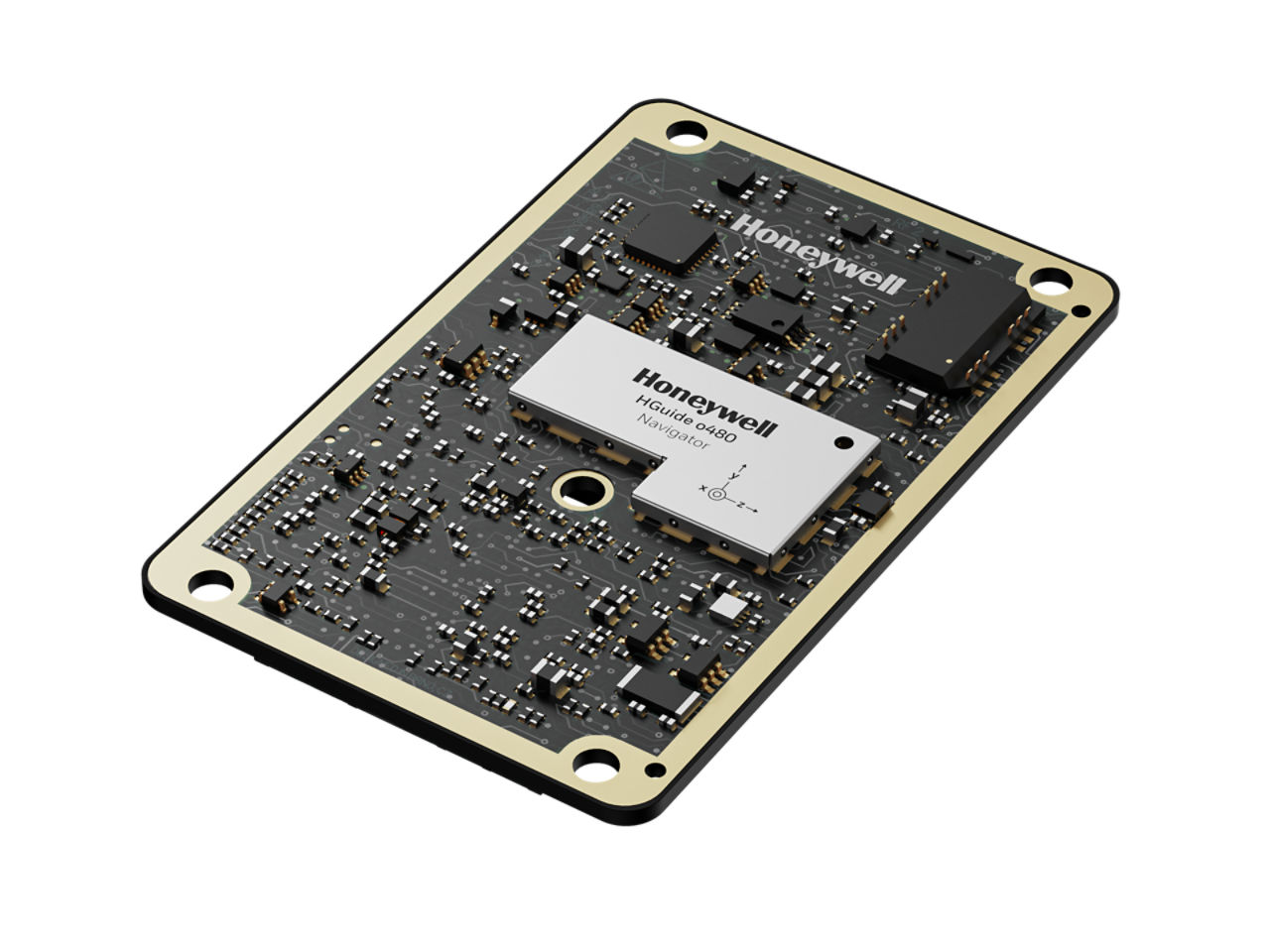

HGuide o480 Inertial/GNSS Navigator
Overview
Honeywell's Hguide o480 IRS/GNSS Navigator delivers resilient navigation for autonomous, low-cost platforms like Unmanned Aerial Vehicle (UAVs), loitering munitions, and unmanned ground or marine vehicles.Key Features:
- Delivers accurate navigation even when GNSS signals are jammed, spoofed or unavailable.
- Integrates proven Honeywell MEMS gyroscopes, accelerometers, and a Septentrio GNSS receiver combined via Honeywell’s Navigation filter for precise position, attitude, and timing information.
- Compact and lightweight: 71.1x 45.7 x 8 millimeters, weighing just 26 grams
- Full INS/GNSS capability in a standard GNSS form factor.
- Alternative navigation aids reduce GNSS-denied error to <0.5% of total distance traveled.
- Equipped with AIM+ anti-jamming technology for continued operation with moderate jamming.
- Greater than 120,000 hours mean time between failures (MTBF).
- Available without an export license in most regions.
- Designed and manufactured in the EU
Specifications
Key Differentiators
Certifications
- CE Mark Compliant
- CISPR 32
- FCC Part 15
- ICES-003
- RoHS
- WEEE
Dimensions
Depth
- 8mm
Weight
- 26g
Dimensions
- 71.1mm x 45.7mm x 8mm
Volume
- Approx. 25.9 cubic centimetre
Performance Data
Accel Bias In-Run Stability (mg 1σ)
- 500
Mean Time Between Failures (MTBF)
- >120,000 hrs
Gyro Bias In-Run Stability
- 0.5 °∕hr 1σ
Operating Temperature
- -40oC to +85oC
Usually Bought With
- Honeywell Radar Velocity System
GNSS Constellations
- All - GPS, Galileo, Beidou, GLONASS, IRNSS, QZSS, SBAS, and L-Band corrections
Supply Voltage
- +3.3VDC to 5VDC +/- 5% voltage alternating current
Power Output
- 1.5 Watts nominal
Accel VRW
- 0.02 m/s/√hr
Gyro ARW
- 0.06 °∕√hr
