HGuide i300 MEMS Inertial Measurement Unit
Overview

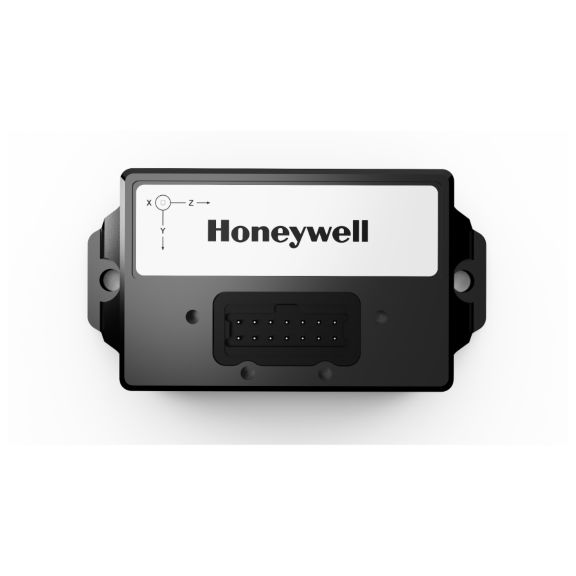

The HGuide i300 Inertial Measurement Unit (IMU) is a small, non-ITAR, micro-electro-mechanical system (MEMS) IMU. HGuide i300 utilizes proven inertial sensor technology originally created for aerospace applications and is perfect for customers who require an advanced precision inertial solution on land, air or sea. Also, this IMU provides accurate and dependable guidance, control and pointing capabilities under the most demanding environments.The HGuide i300 includes MEMS gyroscopes, accelerometers and magnetometers, making it a 9 degrees of freedom (DOF) IMU. It’s easily integrated into any architecture using standard communications interfaces and a wide range of voltage requirements. The i300’s extremely small size (1 cubic inch), lightweight (35 grams) and low power requirements (0.5 watts) make the unit ideal for a wide range of industrial applications, including agriculture, AUVs, communications, industrial equipment, marine, oil and gas, robotics, survey and mapping, stabilized platforms, transportation, UAVs and UGVs.Key Honeywell AdvantagesAvailable Accessories From Honeywell
- Decades of experience producing inertial sensors
- Ability to provide a scalable, cost-effective solution for any application
- Performance levels – and costs – aligned with your needs
- World-class inertial sensor development, calibration and compensation expertise
- Configurable options with selectable output data rates and filtering
- Multiple, configurable communication protocols
- Proven reliability, dependability and ruggedness
- HGuide Evaluation Kits
- Custom PC connection board that will convert RS-422 to USB
- USB cable that connects the interface PC connection board with your computer
- USB flash drive loaded with our HGuide Data Reader software
- Quick start guide
Specifications
Key Differentiators
- Features & Benefits
- Multiple, configurable communication protocols.
- Proven reliability, dependability and ruggedness, through unit life.
- Units feature a range of user configurable options with selectable output data rates and filtering
Dimensions
- Weight
- 35 grams
- Volume
- 17 cm³ (1 in³)/ 42 x 28 x 14 mm cubic centimetre
- Size
- 17 cm³ (1 in³)/ 42 x 28 x 14 mm millimetre
Performance Data
- Accelerometer Operating Range
- ±16g in all axes
- Vibration
- Non-operating : 7.7G RMS
- Random : 20-2000Hz MIL-STD-810G 2.2 grams
- Sinusoidal : 10-2000Hz 2g Peak
- Supply Voltage
- +5.0 to +36 VDC voltage alternating current
- Shock
- 25g bump half-sine per IEC 60068-2-27
- 40g, 11ms per MIL-STD-810G
- Power Consumption (Typical)
- 0.5 Watts
- Operating temperature
- -40°C to +85°C
- Gyro Operating Range
- +/- 490 deg/s in all axes
- Data Rate
- 300 Hz nominal (User configurable)
- Communication Protocols
- RS-422, 5V TTL, CAN voltage alternating current
- Asynchronous Baud Rate
- Configurable: 921.6 Kbs default
