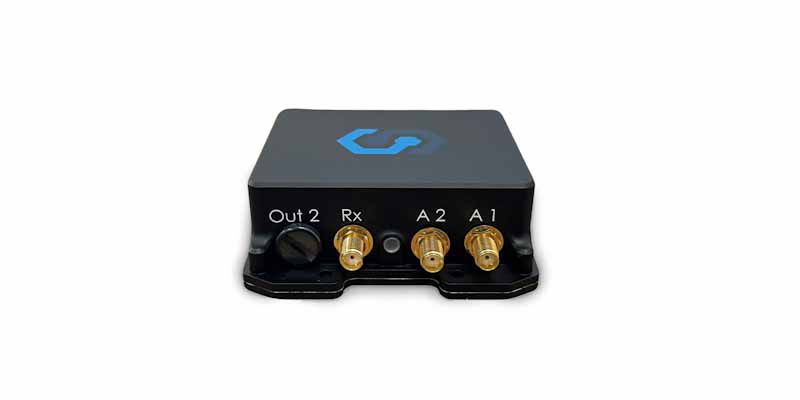

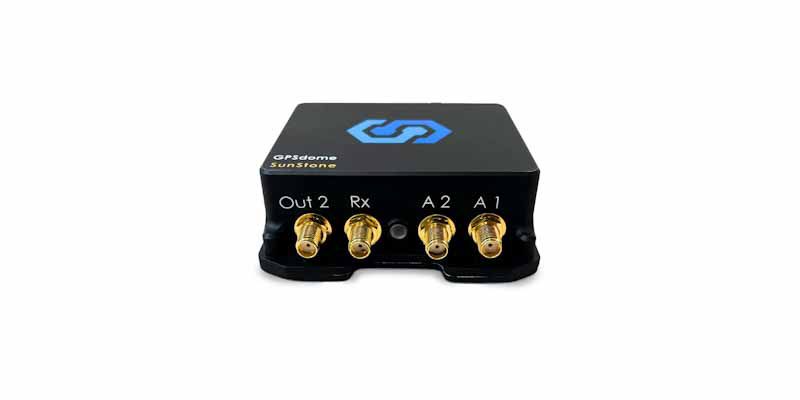

GPSdome-SunStone

Overview
The GPSdome-SunStone, by infiniDome, is a small add-on device that provides the first layer of protection against GNSS jamming attempts, ensuring continuity of operation during low-power jamming conditions and the ability to achieve the crucial first GPS lock even in GPS-challenged environments. GPSdome is compatible with any off-the-shelf GNSS receiver and antenna. Honeywell signed a collaboration agreement with infiniDome in August to jointly develop and deliver GPS signal protection systems.

Honeywell is collaborating with InfiniDome to jointly develop and deliver GPS signal protection systems. The solutions are intended to serve a variety of purposes for both defense and commercial applications, and to support a wide range of vehicle platforms, including commercial aircraft, urban air mobility systems, unmanned aerial systems and surface vehicles.

Specifications

Key Differentiators

  • Certifications

    • RoHS compliant CE Compliant (PPS Version)
  • Features & Benefits

    • Protect against GNSS Jamming

Dimensions

  • Length

    • 80 mm
  • Width

    • 78.5 mm
  • Depth

    • 28mm
  • Weight

    • 180g
  • Dimensions

    • 80x78.5x28mm
  • Volume

    • 130.1 cm³ cubic centimetre cubic centimetre

Performance Data

  • LED

    • Yes
  • Typical Heading Error with HCINS

    • Information not available now
  • Non-operating Temperature Range

    • -40° C to 71° C
  • External LED Status Support

    • Yes
  • Submersion (Non-Operating)

    • IP67
  • Operating Temperature

    • -40° C to 71° C
  • Usually Bought With

    • HCINS HRVS - new
  • Operating Frequency

    • 1575.42 MHz (L1, E1) hertz
  • GNSS Constellations

    • GPS
    • Optional Passthrough - TBD
  • Types of Products

    • Protect against GNSS Jamming
  • Power Consumption

    • Information not available now Watt
  • Chassis Included

    • Yes
  • GNSS Capability

    • GPS L1, E1 Protected frequency
  • Sustainability

    • Compliant
  • Supply Voltage

    • 6-32VDC 3W (typ.)
    • Recommended PSU: Min 24W for peak demand voltage alternating current
  • Component of

    • Resilient Navigation System
  • Applications

    • Small Unmanned Aerial Systems (UAS)
  • Environment

    • IP67
  • Components

    • Signal processing hardware
  • Vibration

    • Information not available now
  • Output

    • Filtered out GNSS signals - protect the system against GPS jamming.
  • Shock

    • Information not available now
  • Setup

    • Plug and Play
  • Power

    • 3W
    • Min PSU 24W Watt
  • Size

    • 80x78.5x28mm millimetre
  • GNSS

    • Protect against GNSS Jamming



  • Compatible Platform

    • Not certfied for aircraft applications for now
