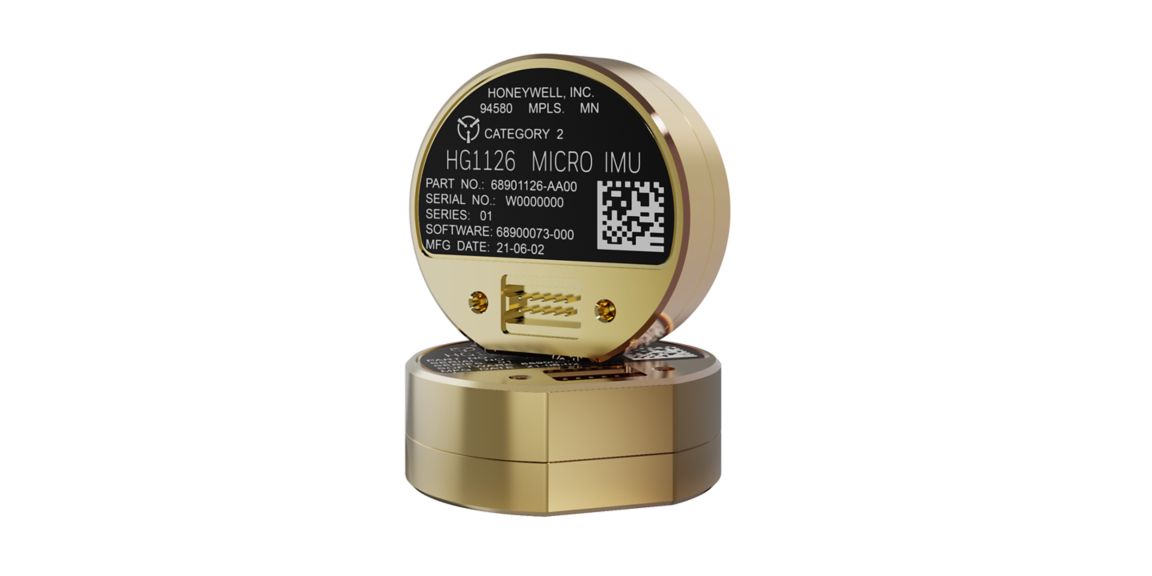

HG1125 and HG1126 MEMS Micro Inertial Measurement Units
Overview
The HG1125 and HG1126 are micro-electro-mechanical system (MEMS) micro inertial measurement units (IMU) designed to meet the needs of a range of applications and markets. These IMUs are designed for harsh environments that require rugged inertial performance in a small form factor. Applications include drilling, military projectile, munitions, interceptor platforms, unmanned aerial vehicles and commercial avionics.Key Honeywell Advantages:
- World-class inertial product development, calibration and compensation.
- Proven reliability, dependability and ruggedness.
- High G capable to 40kG.
- LVDS asynchronous standard protocols.
- Highest-performing MEMS IMU of its size and price.
- Quick start evaluation kit available.
Specifications
Dimensions
- Weight
- <24 grams
- Size
- <0.6in3, 31mm D x 11.7mm H millimetre
- Height
- <24 grams
Performance Data
- Accel Bandwidth, -90°/-3 dB
- 145Hz (configurable to 260Hz) hertz
- Supply Voltage
- +3.3VDC +7%/- 3% voltage alternating current
- Power Consumption (Typical)
- <0.5W
- Operating temperature
- -40°C to +71°C
- Gyro Bandwidth, -90°/-3 dB
- 145Hz (configurable to 260Hz) hertz
- Data Rate
- 600Hz/100Hz (configurable to 1800Hz/300Hz)
- Asynchronous Baud Rate
- 1.0M Baud (configurable to 2.5M Baud)
