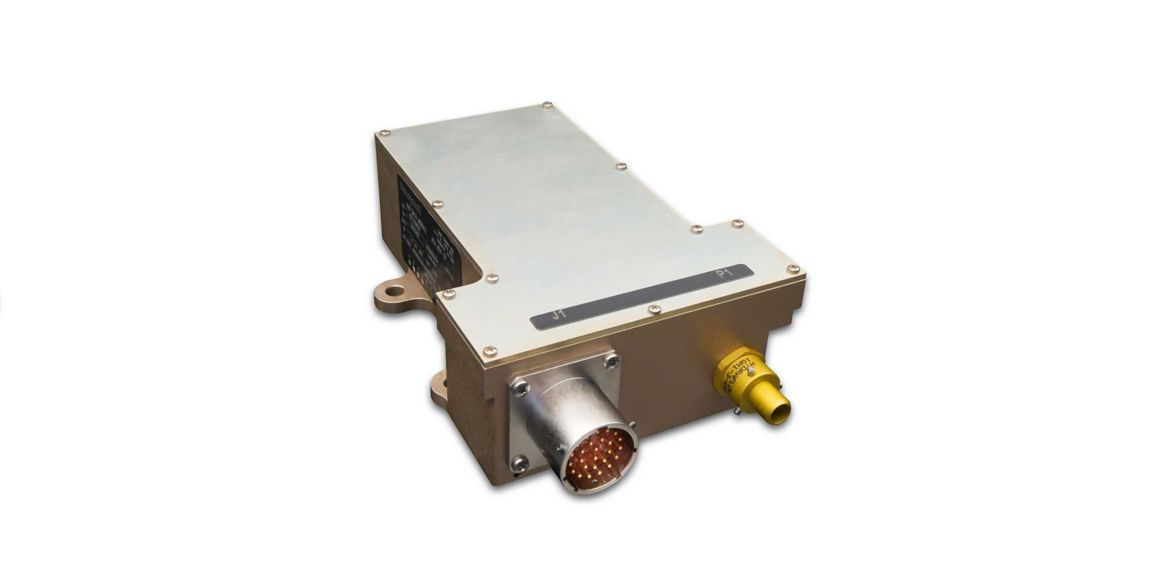

Air Data Modules
Overview
The Air Data Module (ADM) is the core building block of a low-cost, distributed, Air Data System. Our ADMs, which are Reduced Vertical Separation Minima compliant, calculate air data parameters, and provide temperature-corrected pressure digitally to air data inertial reference units (ADIRUs), flight controls, or Modular Avionics Units (MAU). Honeywell Air Data Modules are TSO C106 certified and can be connected directly to a static port, pitot probe, or pitot static probe.
Our air data modules include:
Our air data modules include:
- Industry-leading modules such as size, weight and power (SWAP)
- ADMs feature a reduced plumbing weight by locating it near the probes.
- Highly reliable parts because they don’t combine electronics with low reliability mechanical probes and heaters.
- Industry-leading sensor stability that results in low fleet provisioning and sparing rates due to high maintenance costs from periodic accuracy checks.
- Reduced maintenance costs from periodic accuracy checks due to industry-leading sensor stability.
Compatible Aircraft
Airbus A320
Boeing 737
Boeing 777
Boeing 787
Citation Sovereign
Gulfstream G450
Gulfstream GIV Family
Gulfstream V
Hawker 4000
Leonardo Helicopter AW139
Pilatus PC-12 NG
Pilatus PC-24
Specifications
Key Differentiators
- Key Savings
- Modular-design optimized for cost-effective new build and retrofit applications
Dimensions
- Weight
- 0.5 lbs / 0.24 kg (w/o fittings) (HG1154)
- 1.5 lbs / 0.65 kg (w/o fittings) (HG1152AA/DA)
- 1.5 lbs / 0.65 kg (w/o fittings) (HG1153DA)
- 1.5 lbs / 0.65 kg (w/o fittings) (PG1152BC)
- 1.6 lbs / 0.71 kg (w/o fittings) (HG1153CA)
Performance Data
- Accuracy
- 0.02% FS accuracy Percentage
- Software
- RTCA/DO-178B Level A
- Power
- 15V or 5V DC, 2W (HG1154) Watt
- 28 VDC, 3 W (HG1153CA) Watt
- ±13.5 VDC, 3 W (HG1152AA/DA) Watt
- ±13.5 VDC, 3 W (HG1153DA) Watt
- ±13.5 VDC, 3 W (PG1152BC) Watt
- Output
- Analog and discrete outputs ADT valid (HG1152AA/DA)
- Analog and discrete outputs ADT valid (HG1153CA)
- Analog and discrete outputs ADT valid (HG1153DA)
- Analog and discrete outputs ADT valid (HG1154)
- Analog and discrete outputs ADT valid (PG1152BC)
- Number of Sensors/Channels
- 1 (HG1152AA/DA)
- 1 (PG1152BC)
- 2 (HG1153CA)
- 2 (HG1153DA)
- 2 (HG1154)
- Coverage
- 98% BIT coverage meter
