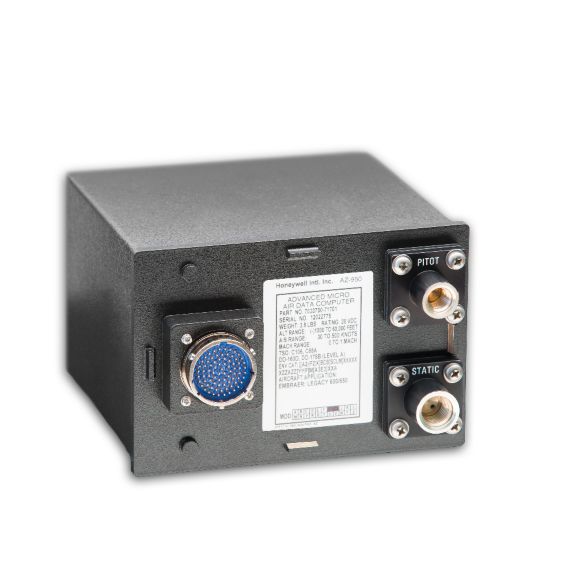

Air Data Computers
Overview
Honeywell provides several varieties of RVSM compliant Air Data Computers which utilize Honeywell's leading-edge sensor technology to provide air data parameters, including SSEC, altitude, airspeed, and air temperature information for business jet and regional aircraft. The outputs are communicated to other aircraft systems via various methods including analog DC and digital buses.
- Standalone computation provides industry-leading size, weight and power (SWAP), enabling increased fuel performance
- Reduced maintenance costs from periodic accuracy checks due to industry-leading sensor stability
- Our air data products offer industry-leading sensor stability with our silicon pressure sensors and transducers as well as excellent long-term stability for reduced maintenance
Compatible Aircraft
Boeing 747
Boeing 757
Boeing 767
Bombardier Challenger 600
Cessna Citation Bravo
Cessna Citation Encore
Dassault Falcon 900A/B
Gulfstream GIV Family
Gulfstream V
Hawker 800
Hawker 800XP
Specifications
Key Differentiators
Certifications
- TSO-C106
Features & Benefits
- Extensive Field History with long service life
- Proven solid-state silicon sensor technology provides long-term stability
Key Savings
- Low cost modular design optimized for both new build and retrofit applications
Dimensions
Dimensions
- 15.6 in. Length x 3.7 in. Width x 6.0 in. Height
- 394 mm Length x 93 mm Width x 151 mm Height
Performance Data
Power
- 115 vac, 400 Hz, less than 35 W Watt
Digital Communication Output
- All Necessary Air Data Parameters (ARINC 429)
- Maintenance Data (ARINC 429)
Digital Communication Input
- Digital Baro Correction
Number of Sensors/Channels
- 2
Chassis Included
- Yes
Altitude Range
- -2,000 to +60,000 ft
Sensor Range
- 2 in Hg to 41 in Hg (Ps and Pt)
Environment
- D0-160 D
Software
- RTCA/DO-178B Level A
Coverage
- 98% BIT coverage meter
Accuracy
- 0.02% FS accuracy Percentage
Output
- Analog and Discrete I/O
Product Number
Parts
